Analysis of Gases Dissolved in Electrical Insulating Oil by Gas Chromatography (ASTM D3612)
06/30/2022

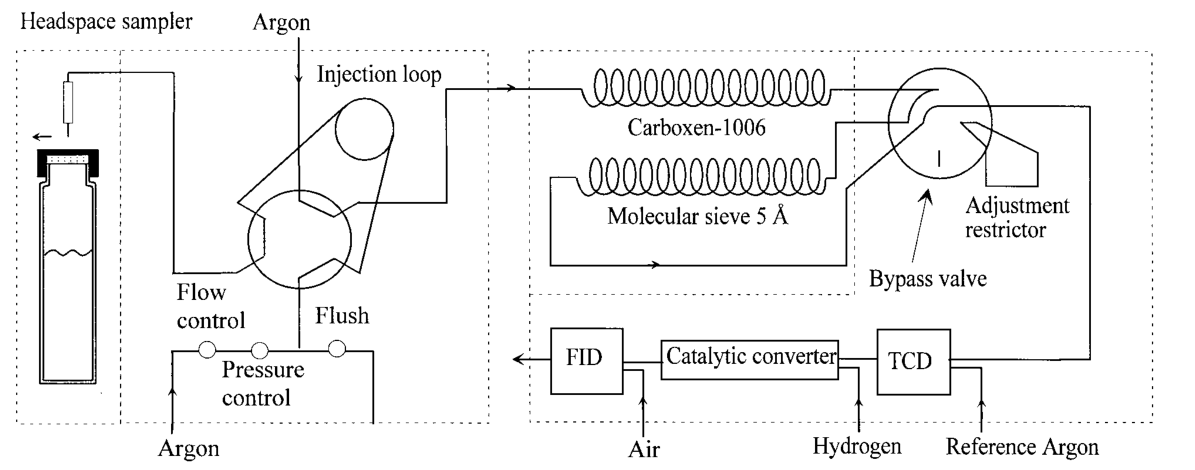

Apparatus: ( ASTM D3612 ) 1: Headspace Sampler(Shanghai Sida) 2: Gas Chromatograph (Shanghai LingHua) 3: Molecular Sieve,5 Å PLOT column (30-m by 0.53-mm inside diameter with a film thickness of 50 µm) for the separation of the lighter gases (H2, O2 , N2 , CH4 , and CO). 4: Carboxen-1006 PLOT Column (30-m by 0.53-mm inside diameter) for the separation of the other compounds(CO2, C2H2, C2H4, C2H6, and C3H8). 5: Catalytic Converter, containing powdered nickel in-stalled between the TCD and the FID, for the conversion of CO and CO2 into CH4 for a sensitive recording of the signal by the FID. 6: Zero-dead Volume Adapter, for the column connections(0.53-mm inside diameter). 7: Headspace Glass Vials, of 20-mL nominal capacity. 8: Crimping System, including crimp head and a decapper head. 9: Perforated Aluminum Caps. 10: TFE-fluorocarbon Faced Butyl Septa for headspace vials. 11: Glass Syringes, 30-mL equipped with three-way plastic stopcocks. 12: Needles, 18G1 and 26G1/2 . 13: Pressure Regulators, two-stage, with a delivery pres-sure adjusted at 20.7 Kpa (3 psi) for the cylinders containing the argon and the calibrating gases
